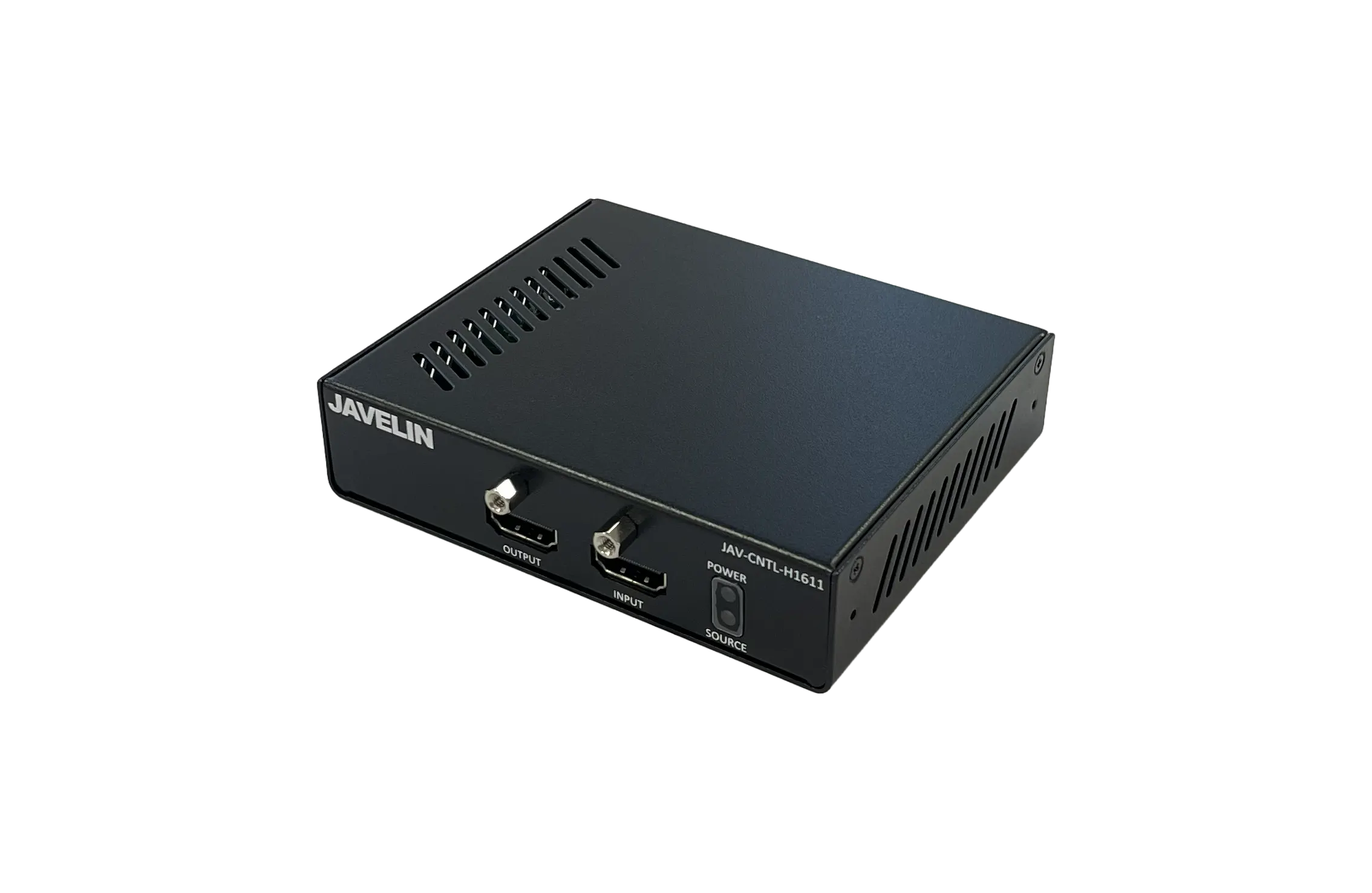

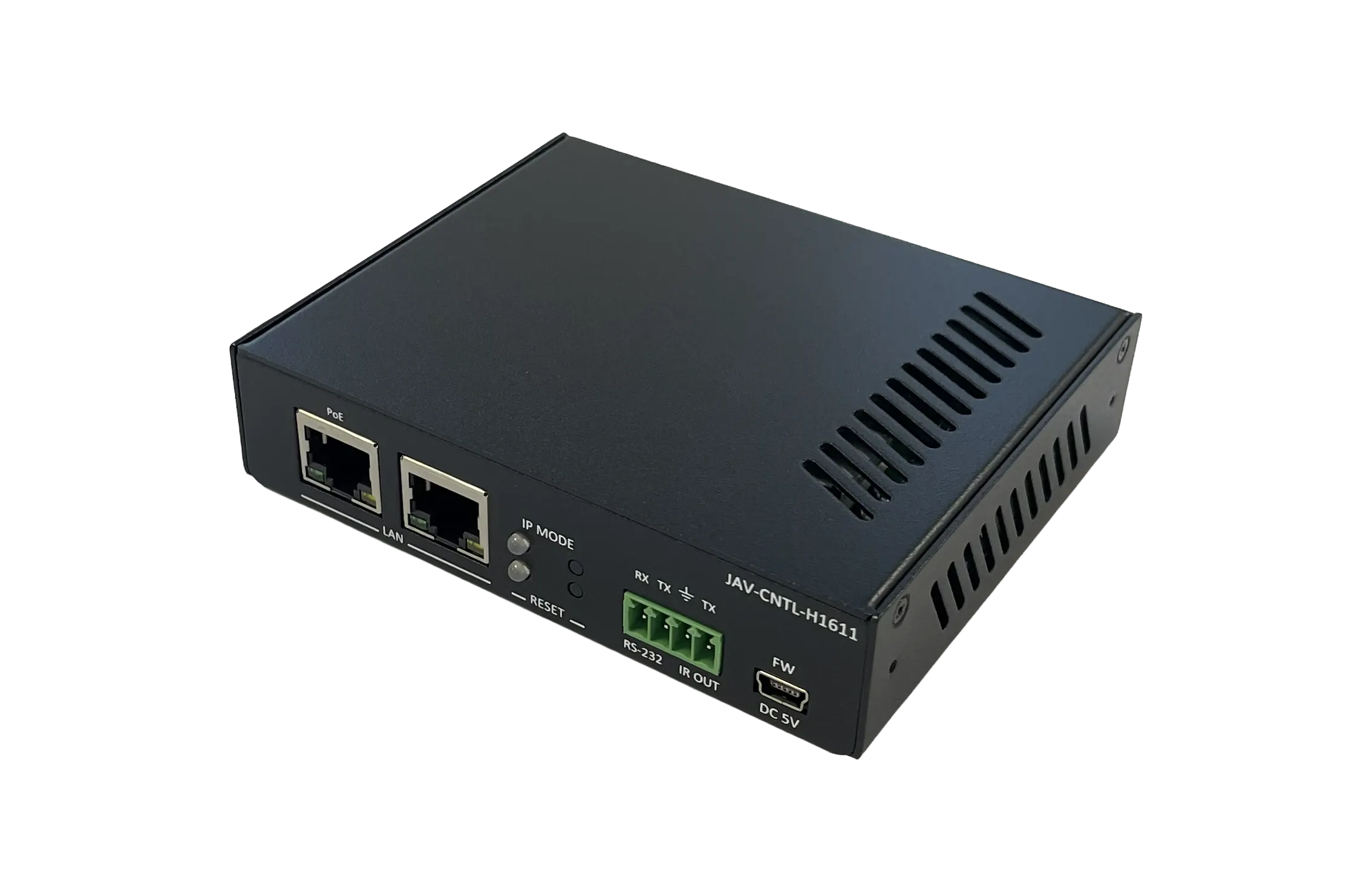

JAV-CNTL-H1611

The Javelin JAV-CNTL-H1611 is a compact display controller, designed for small meeting spaces and huddle rooms. The Display Controller detects connection of a source device with an active signal, and then automatically sends a control command to power up a display. Similarly, when the device is disconnected, the DISP-CTRL delivers a command to power down the display. The DISP-CTRL can be configured to deliver pre-stored or user-programmed display control commands through TCP/IP, RS-232, IR, or CEC. Additionally, this controller includes EDID and HDCP management features, and can be powered locally or through Power over Ethernet (PoE). The JAV-CNTL-H1611 is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI® data rates up to 18 Gbps.

The JAV-CNTL-H1611 enables simple plug-and-play operation for a presenter – while eliminating the need to rely on a handheld remote control that is often misplaced or non-functional (dead batteries). The DISP-CTRL can be used on its own, or in conjunction with an HDMI switcher. The JAV-IR-CS-TX emitter cable is available for controlling a display through IR. For additional integration convenience, the DISP-CTRL features adjustable standby and lamp cooldown timer modes, TCP/IP and RS-232 control, and remote management with Velocity™ Device Manager. A comprehensive selection of display drivers from the Velocity™ Control System driver database is available for setting IR, RS-232, or IP control commands.

Applications

• Huddle rooms and open meeting spaces – The DISP-CTRL provides a simple automation solution for BYOD connectivity in any gathering area with a display installed, but no other AV equipment.

• AV system upgrades – The DISP-CTRL is ideal as an easy problem-solver for legacy AV installations to provide automatic display control capabilities.

• Control systems – Use the DISP-CTRL to easily add a new display to an existing control system, while avoiding the need for extensive reprogramming.
