Hall Tech · Medical-KVM
GEM-EX-S
A compact, high-performance HDMI extender designed for reliable long-distance signal transmission. The GEM-EX-S delivers stable HD video, clean audio, and consistent performance for commercial AV installs, conference rooms, digital signage, and pro-grade systems. Built for installers who need simple setup, dependable quality, and long-run flexibility.
Precio para clientes
Creá tu cuenta y accedé a precios, stock y cotizaciones.
Solicitar cuenta de cliente¿Ya tenés cuenta? Ingresá
Descripción técnica

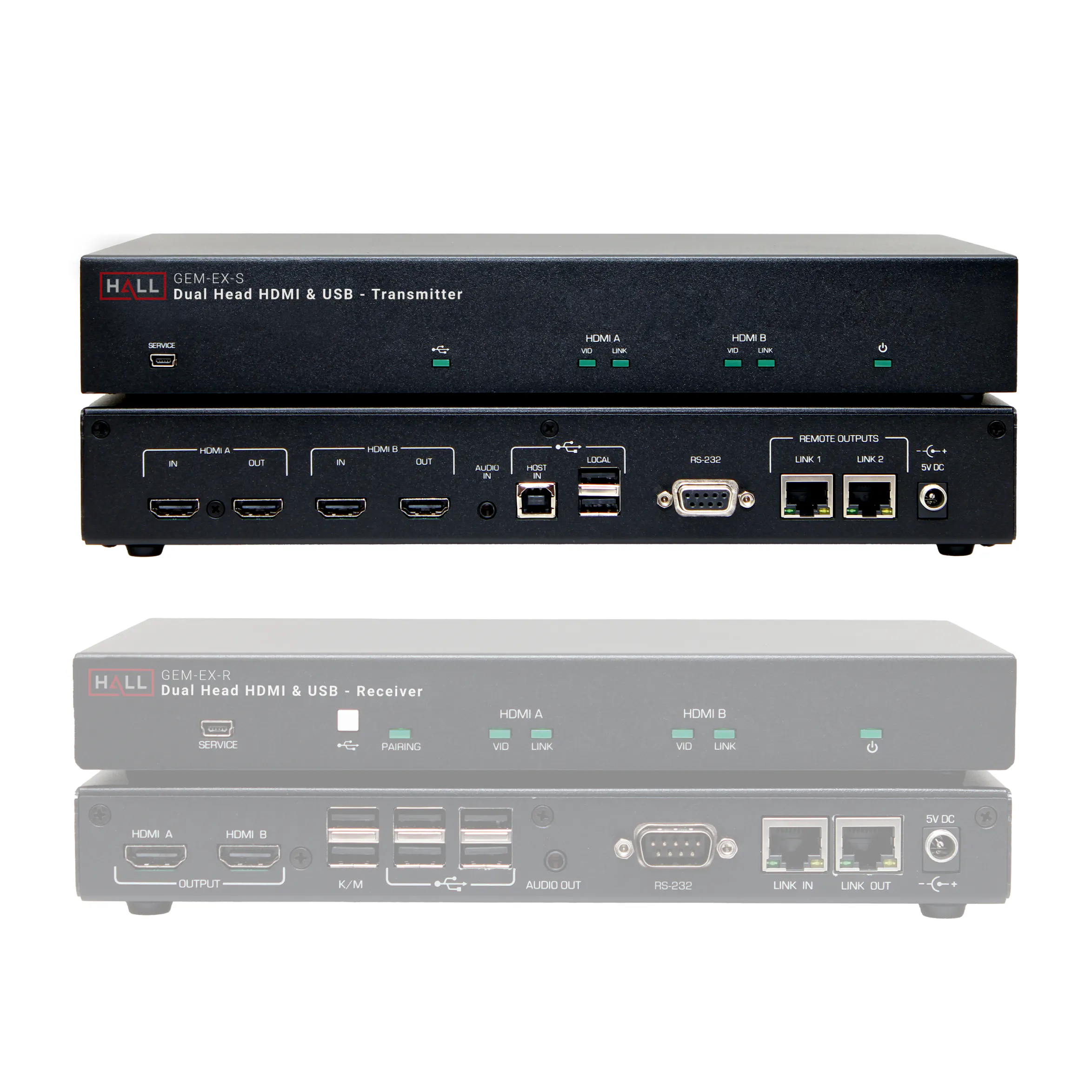

The GEM-EX is comprised of the GEM-EX-S Sender and the GEM-EX-R Receiver. The system is used to extend USB 2.0, Audio, dual RS-232, and dual display HDMI video supporting various resolutions including 1080p @ 60 Hz and 4K UHD @ 30 Hz. These signals are extended to one or more Receivers up to a distance of 100 m (328 ft.) over a single CAT6 cable.
In a setup with one Sender going to only one Receiver, the USB ports automatically pair with the Sender. However, when there is more than one GEM-EX Receiver connected to the same Sender, only one Receiver can be paired at a given time. Pairing is accomplished using a push-button on the front panel of the Receiver. A corresponding LED next to the button indicates USB pairing status with the Sender.
Each Receiver features an RJ45 LINK OUT port that can be daisy-chained to down-stream Receivers. All signals are re-buffered, so the LINK OUT port can drive cables to 100 meters long.
Dimensiones físicas
Ancho
28.5 cm
Alto
4.2 cm
Profundidad
15.4 cm
Peso
1.27 kg
Identificación del fabricante
Modelo
GEM-EX-S
