GEM-EX-R
The GEM-EX-R is a receiver module in a dual-4K HDMI extension system that transmits HDMI (3840×2160), USB 2.0, analog audio and dual RS-232 over a single Cat6 cable up to 100 m. It supports daisy-chaining, local HDMI/USB outputs and works plug-and-play—ideal for medical, AV-over-UTP and multi-display deployments.
Precio para clientes
Creá tu cuenta y accedé a precios, stock y cotizaciones.
Solicitar cuenta de cliente¿Ya tenés cuenta? Ingresá
Descripción técnica

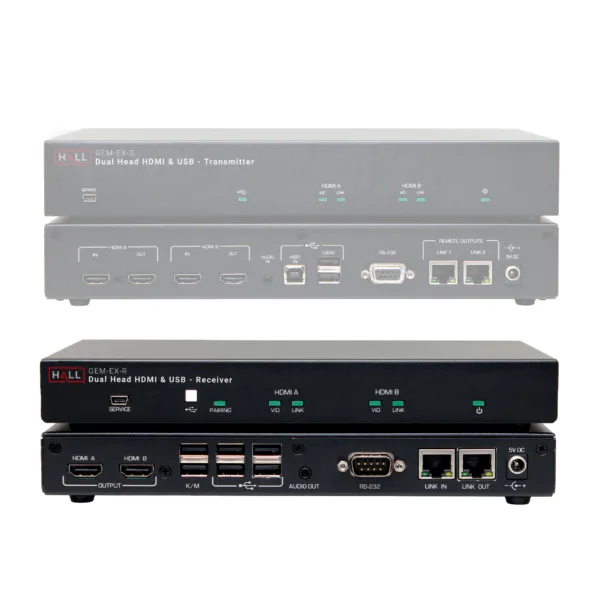

The GEM-EX is comprised of the GEM-EX-S Sender and the GEM-EX-R Receiver. The system is used to extend USB 2.0, Audio, dual RS-232, and dual display HDMI video supporting various resolutions including 1080p @ 60 Hz and 4K UHD @ 30 Hz. These signals are extended to one or more Receivers up to a distance of 100 m (328 ft.) over a single CAT6 cable.
In a setup with one Sender going to only one Receiver, the USB ports automatically pair with the Sender. However, when there is more than one GEM-EX Receiver connected to the same Sender, only one Receiver can be paired at a given time. Pairing is accomplished using a push-button on the front panel of the Receiver. A corresponding LED next to the button indicates USB pairing status with the Sender.
Each Receiver features an RJ45 LINK OUT port that can be daisy-chained to down-stream Receivers. All signals are re-buffered, so the LINK OUT port can drive cables to 100 meters long.
Dimensiones físicas
Ancho
22.8 cm
Alto
2.8 cm
Profundidad
12.8 cm
Peso
0.59 kg
Identificación del fabricante
Modelo
GEM-EX-R
