HW-OMNI-E4111-WP

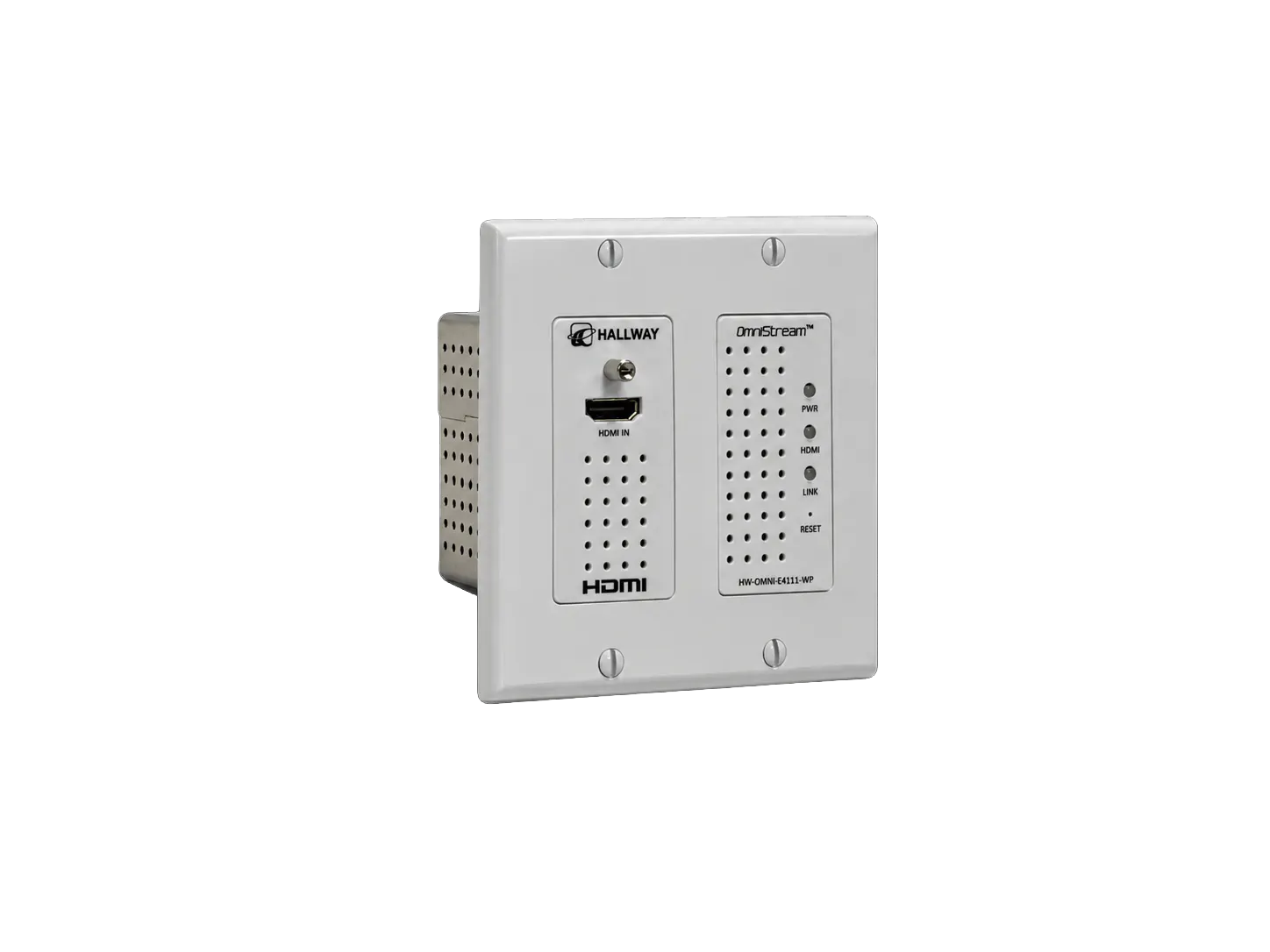

The HW-OMNI-E4111-WP is a networked AV encoder for HDMI sources up to 4K/60 UHD and HDR, plus embedded audio. It features a US two-gang wall plate form factor with interchangeable black and white wall plates and faceplates, enabling discreet installation on a wall, in furniture, or in a floor box. Powered by the VCx™ codec, it delivers 4K/60 UHD with artifact-free presentation and ultra-low latency, with dual encoding engines for simultaneous 4K and 1080p streams. Powered exclusively by PoE, the HW-OMNI-E4111-WP requires no local AC outlet. Compatible with any HW-OMNI decoder.

Includes both white and black covers.

Features

• 4K/60 4:4:4 encode with VCx™ codec — artifact-free image quality and ultra-low latency (<1 frame).

• HDR support: HDR10, HLG, and Dolby® Vision™ at 60 Hz.

• US two-gang wall plate form factor — interchangeable black and white plates and faceplates included.

• Dual encoding engines — simultaneous 4K/60 4:4:4 (Encoder 1) and 1080p (Encoder 2) streams.

• HDCP 2.2 compliant; AES-128 encrypted stream delivery.

• PoE (IEEE 802.3af) powered — no local AC required; optional 48V external supply.

• IEEE 802.1x network authentication; HTTPS, SSH, Telnet, WebSocket/TLS management.

• AES67-compatible audio; simultaneous OmniStream and AES67 streaming.

• Thumbnail preview of encoded streams (320×180px, 2-second update) for source monitoring.

• Half-width rack enclosure with front-to-rear temperature-controlled airflow.

• NDAA Section 889 and TAA compliant.

Applications

BYOD Meeting Rooms

• Provide a discreet, wall-mounted HDMI connection point for laptop users to share content over the network without visible cables or rack equipment.

Huddle Spaces & Collaboration Rooms

• Enable AV over IP source input in any room using a standard US 2-gang opening, powered entirely from the network switch.

Education & Lecture Halls

• Install at presenter podiums or AV connection points where an aesthetically clean, low-profile encoder is required.

Enterprise AV Distribution

• Distribute encoded HDMI sources across campus networks to any connected HW-OMNI decoder from a convenient wall-mounted location.
