HW-LUMA-E4211

The HW-LUMA-E4211 is an H.264 and H.265 networked AV encoder for HDMI sources. Designed for high-performance distribution of video, audio, and control over data networks, with emphasis on bandwidth efficiency and scalability. H.265 (HEVC) encoding is ideal for multicast video distribution to HW-LUMA-D4111 decoders, while H.264 encoding is ideal for internet streaming via RTMP. Accepts HDMI input up to 4K/60 4:4:4; encodes up to 4K/60 4:4:4. Features MJPEG streaming, snapshot capture, Dante® audio encoding, video deinterlacing, audio de-embedding, automated multicast configuration, and image/text overlay.

Features

• H.264 and H.265 (HEVC) encoder for HDMI sources with HDCP 2.2/1.4 compliance.

• Accepts HDMI source input up to 4K/60 4:4:4; encodes up to 4K/60 4:4:4.

• H.265 encoding enables up to 50 simultaneous 4K streams over a Gigabit Ethernet link.

• HDMI loop-through output ideal for local display or AV switcher connection.

• Supports RTMP (Real-Time Messaging Protocol) streaming to YouTube, Facebook, and Wowza.

• Simplified multicast configuration with pre-assigned multicast IP addresses.

• MJPEG sub-stream preview up to 854×480 @ 30 fps at 2048 kbps.

• Logo overlay, full-screen backup image, and scrolling text overlay.

• Simultaneous LumaStream and Dante® audio streaming from main or Dante LAN port.

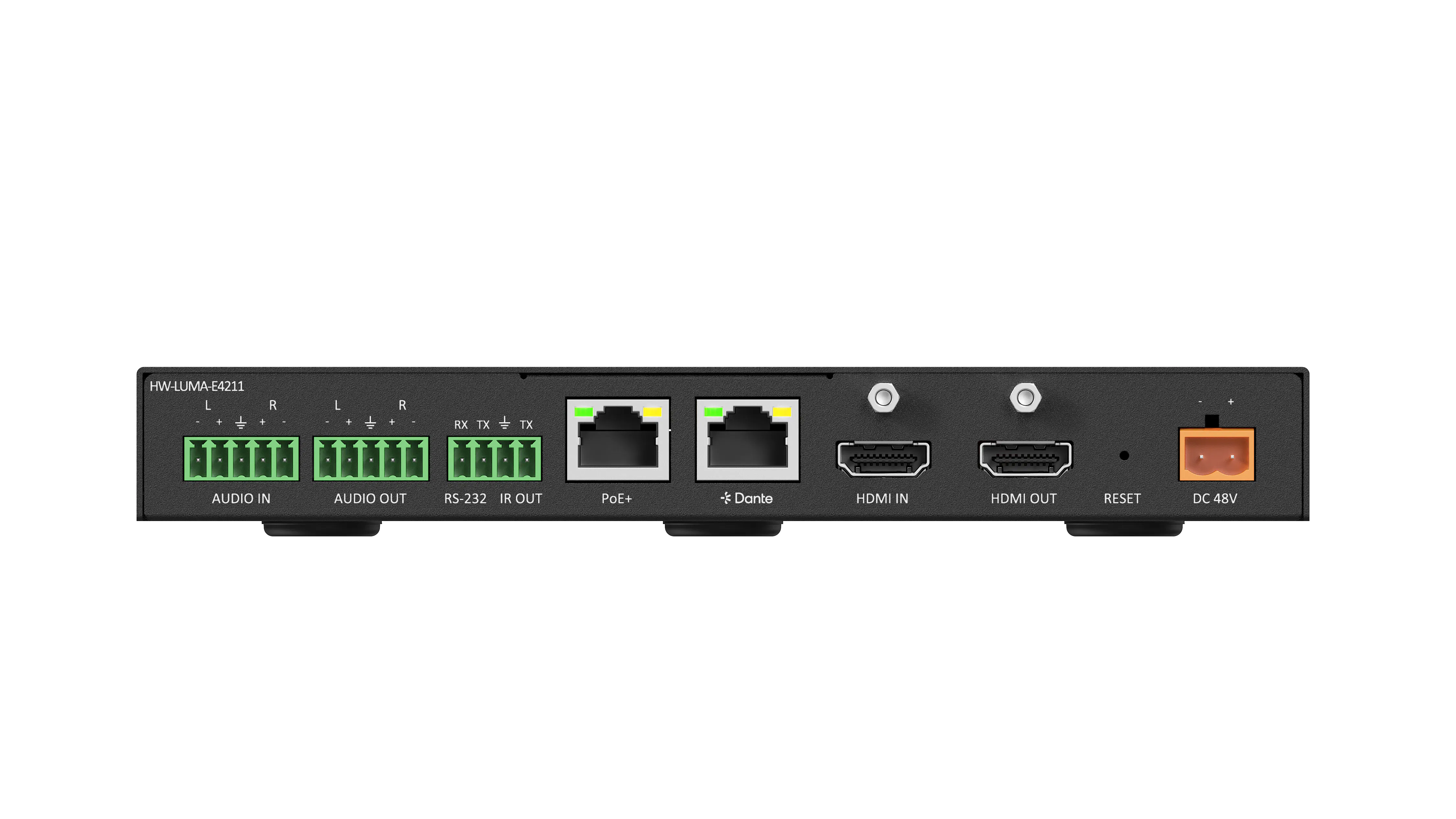

• Balanced analog audio input and output (5-pin captive screw, ±20 dBu).

• PoE+ (IEEE 802.3at) powered — no local power supply required.

• AES-128 encrypted content distribution with IEEE 802.1X network authentication.

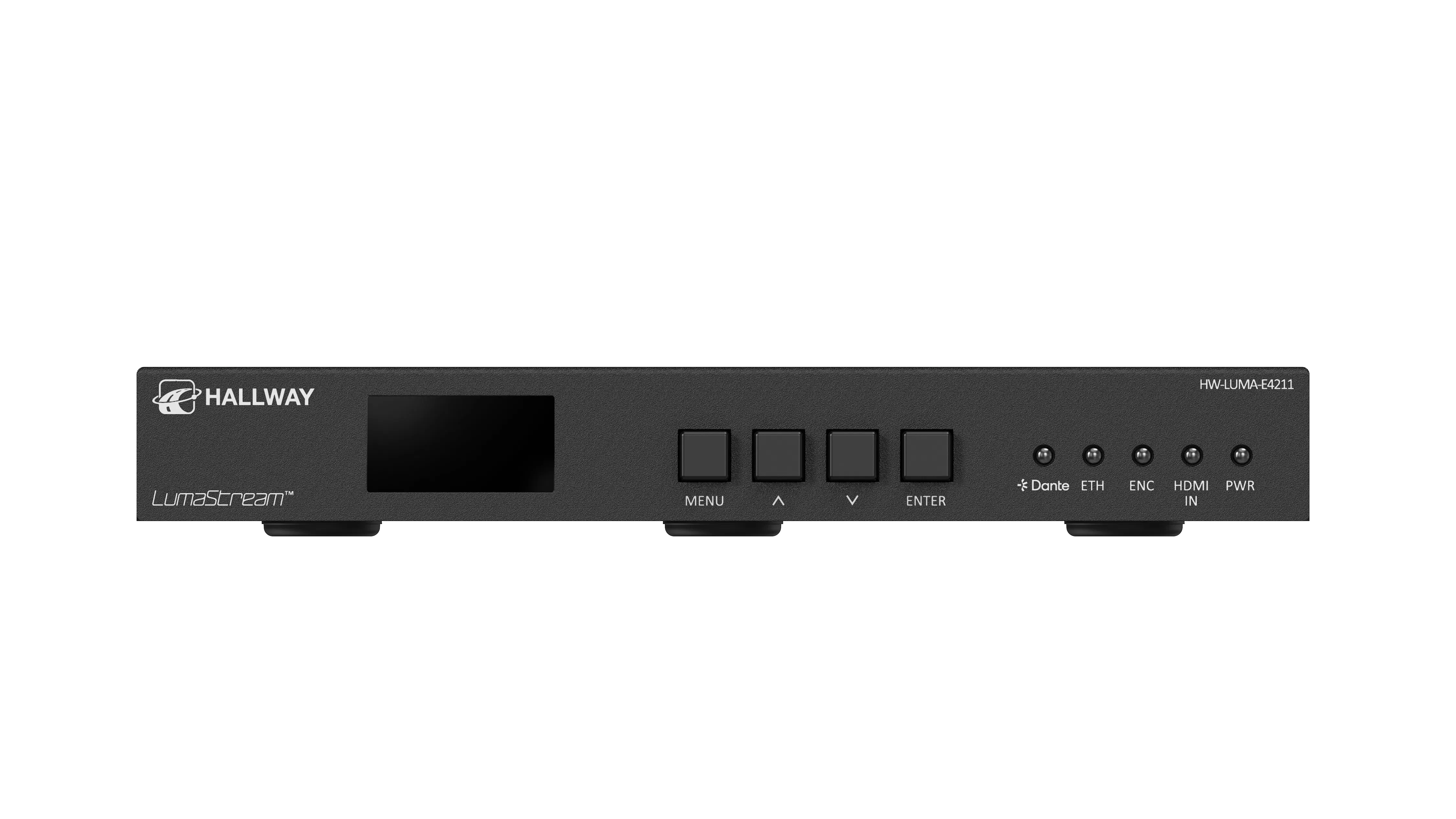

• Front panel LCD display and four-button navigation menu.

• Intuitive web-based GUI; TCP/IP control with open JSON API.

• Velocity™ Device Manager integration; field-updatable firmware.

• Compact fanless enclosure with optional rack mounting.

Applications

Digital Signage

• Retail, hospitality, hotels, sporting venues, casinos, convention centers, and menu boards.

Bars, Restaurants & Venues

• Streaming television and informational content to displays and video walls.

Educational Institutions

• K–12 school video and audio announcements to classrooms and common areas.

Livestreaming

• H.264 RTMP streaming to YouTube, Facebook, and compatible online services.
