HW-LUMA-D4111

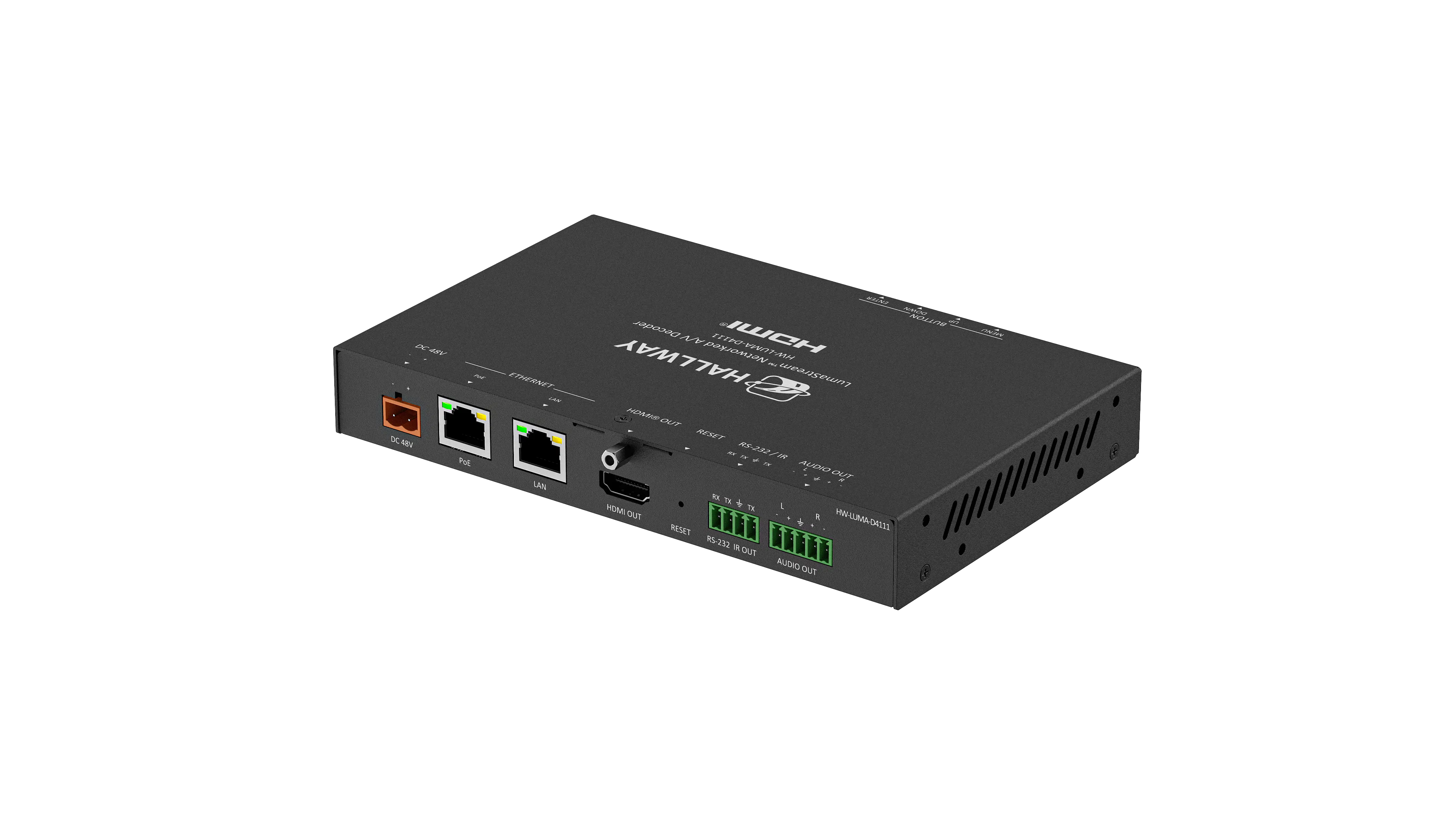

The Atlona HW-LUMA-D4111 is an H.264 and H.265 networked AV decoder for HDMI® output, along with RS-232 and IR control. LumaStream™ is designed for high-performance distribution of video, audio, and control over data networks, with an emphasis on network bandwidth efficiency and scalability. The LUMA-D4111 receives and decodes video from LUMA-E4211 encoders up to 4K/60 4:4:4. H.265 (HEVC) encoding is ideal for multicast video distribution from HW-LUMA-E4211 encoders. H.264 encoding is ideal for applications with LUMA-D4111 decoders alongside third-party H.264 platforms for online or on-premises live streaming. This decoder also features snapshot image captures, for previewing its video output as a thumbnail on a touch panel or in a web browser.

Features

• H.264 and H.265 (HEVC) decoder for HDMI outputs

• High-efficiency H.264 or H.265 encoding

• Integrated video processing including 4K upscaling and downscaling

• Simplified multicast discovery and joining

• Fast switching

• Preview decoder output as a snapshot image thumbnail

• Enhance AV presentations with visual enhancements

• Audio de-embedding

• PoE+ (Power over Ethernet+) or optional local powering

• Simplify integration with plug and play network switch compatibility

• Secure content distribution with AES-128 encryption

• Supports industry standard network security features and protocols

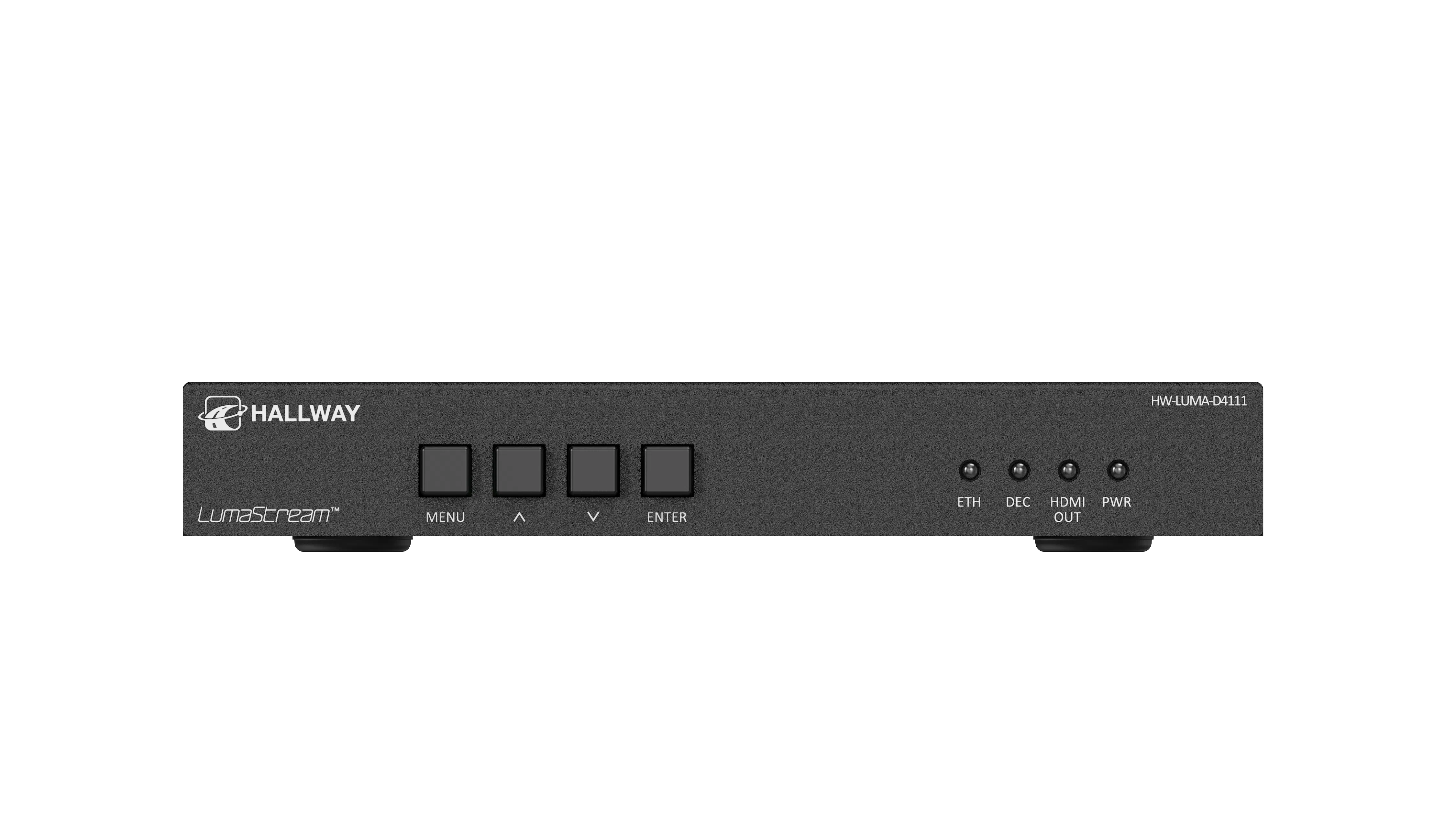

• Front panel signal status LEDs

• On-screen display

• Field-updatable firmware

Applications

Digital Signage

• LumaStream is ideal for signage applications in which there are just a few sources serving many display locations. Typical installations include retail, hospitality, student centers, hotels, sporting venues, casinos, and convention centers. It is well suited for menu boards, as it supports both portrait and landscape orientations.

Bars, Restaurants, and Other Venues

• LumaStream is a great choice for streaming multiple sources of television and informational content to displays and even video walls. Staff can preview content live on an Atlona Velocity™ touch panel before assigning it to one or more destinations.
