AT-USB-EX350-WPD-KIT

The Atlona AT-USB-EX350-WPD-KIT is a data only USB 3.2 extender kit. It supports simultaneous extension of 5 Gbps USB 3.2 Gen 1 data and 480 Mbps USB 2.0 data up to 330 feet (100 meters) using a single, cost-effective Category 6A U/FTP cable. The USB-EX350-WPD-KIT is ideal for video conferencing or remote instruction applications where high data rate USB components including laptops, computers, cameras, microphones, and speakers are in different areas of the room.

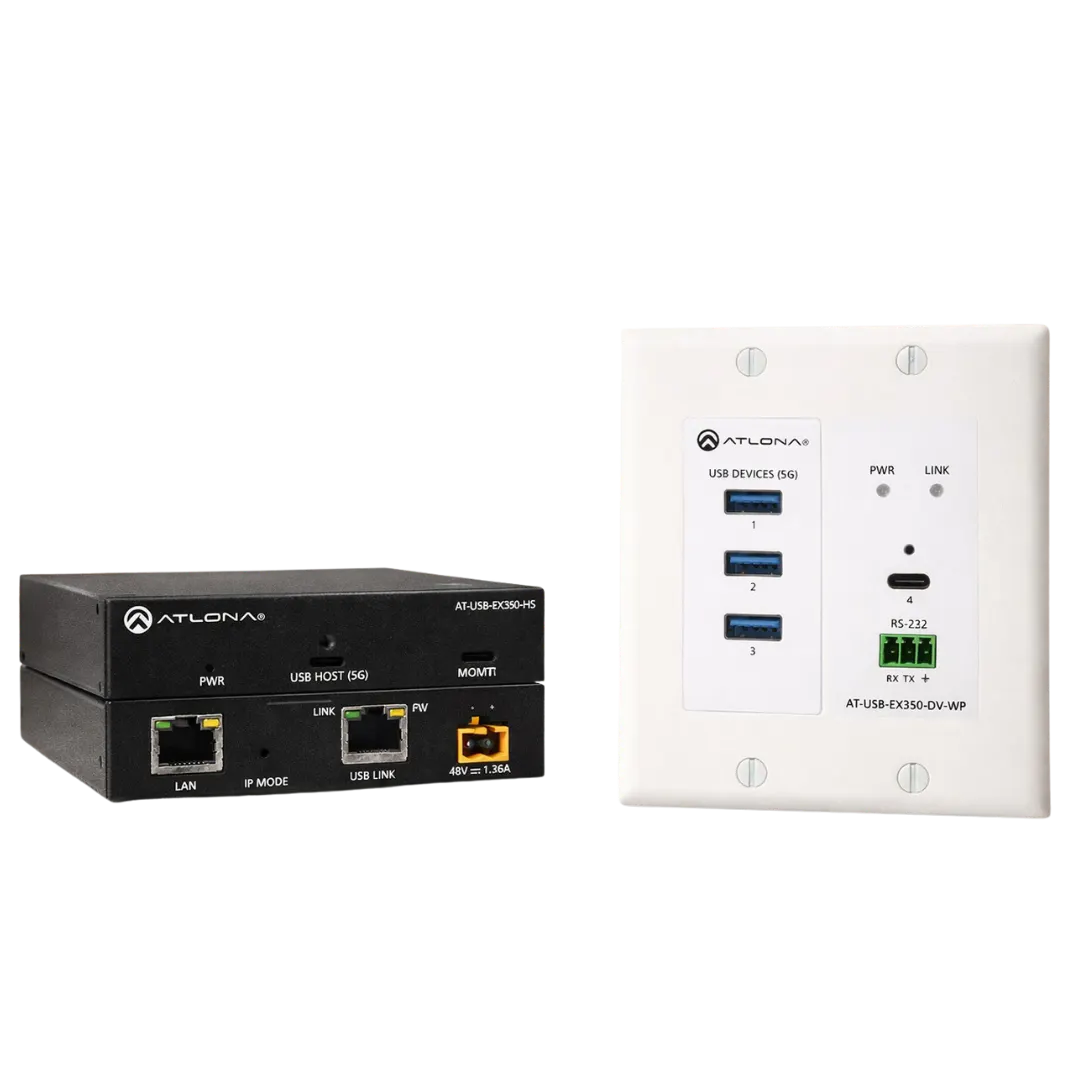

The USB-EX350-WPD-KIT is comprised of two endpoints. The host endpoint includes a USB-C port for connection to hosts such as laptops, computers, or other AV equipment that supports USB connectivity including many Omega™ Series products. The device endpoint is a two-gang wall plate that includes three USB Type A ports and one USB-C port for connection to 4K cameras, conferencing bars, microphones, speakers, and other peripherals. Bidirectional remote power allows the kit to be powered by the included power supply connected to either the host or device endpoint.

Applications

• Education – Provides clean wall plate device connection for classroom applications where higher data rate USB peripherals such as 4K cameras are located at distances of up to 330 feet (100 meters) from the room computer or teacher laptop.

• Commercial – Access higher data rate USB peripherals at distances of up to 330 feet (100 meters) from a room computer or BYOD laptop host connected to a wall plate matching the aesthetics of modern meeting room environments.
