AT-USB-EX350-KIT

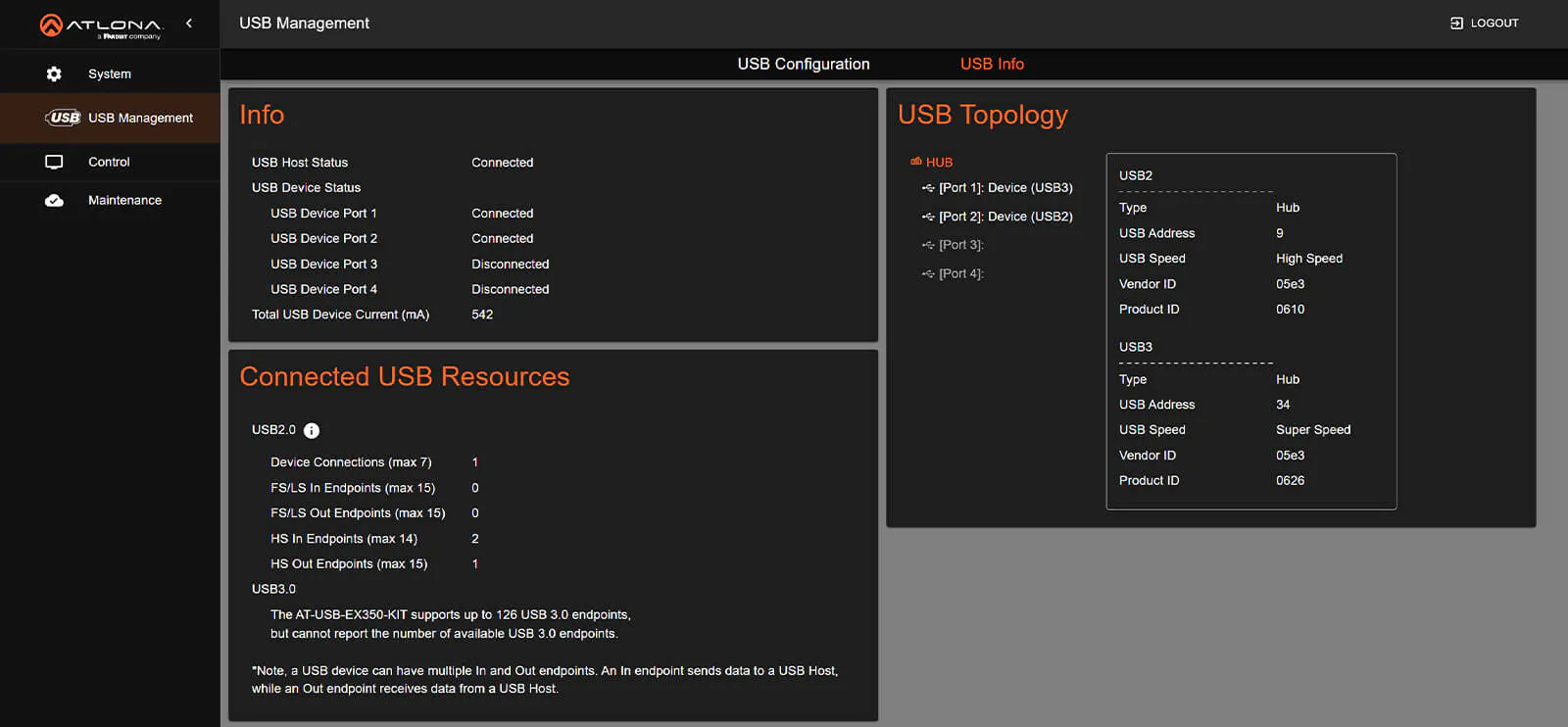

The AT-USB-EX350-KIT is a point-to-point USB extender kit built for high-data-rate applications — it supports USB 3.2 Gen 1 (up to 5 Gbps) and USB 2.0 (up to 480 Mbps) and allows you to transmit those signals up to ~330 ft (100 m) over a single Cat6a U/FTP cable. It features a host endpoint with a USB-C connection, and a device endpoint with three USB-A ports and one USB-C port for connecting high-bandwidth peripherals like 4K cameras, conferencing bars, mics or speakers. Remote-powering is bidirectional (either endpoint can be powered), and there’s an integrated LAN port on the host side for system monitoring, VBUS configuration, firmware updates and RS232/IP control. Ideal for meeting rooms, remote instruction spaces or any setup where USB devices need to live far from the host computer.
Precio para clientes
Creá tu cuenta y accedé a precios, stock y cotizaciones.
Solicitar cuenta de cliente¿Ya tenés cuenta? Ingresá
Descripción técnica
The Atlona AT-USB-EX350-KIT is a data only USB 3.2 extender kit. It supports simultaneous extension of 5 Gbps USB 3.2 Gen 1 data and 480 Mbps USB 2.0 data up to 330 feet (100 meters) using a single, cost-effective Category 6A U/FTP cable.
The USB-EX350-KIT is ideal for video conferencing or remote instruction applications where high data rate USB components including laptops, computers, cameras, microphones, and speakers are in different areas of the room.
The USB-EX350-KIT is comprised of two endpoints. The host endpoint includes a USB-C port for connection to hosts such as laptops, computers, or other AV equipment that supports USB connectivity including many Omega™ Series products. The device endpoint includes three USB Type A ports and one USB-C port for connection to 4K cameras, conferencing bars, microphones, speakers, and other peripherals. Bidirectional remote power allows the kit to be powered by the included power supply connected to either the host or device endpoint.
Applications
• Education – Ideal for remote instruction applications where higher data rate USB peripherals such as 4K cameras are located at distances of up to 330 feet (100 meters) from a classroom computer or teacher laptop.
• Commercial – Provides access to higher data rate USB peripherals such as 4K cameras that are located at distances of up to 330 feet (100 meters) from video conferencing software running on a meeting/conference room computer or laptop.
Dimensiones físicas
Ancho
13.5 cm
Alto
2.3 cm
Profundidad
10.0 cm
Peso
0.45 kg
Identificación del fabricante
Modelo
AT-USB-EX350-KIT
