Atlona · Extenders

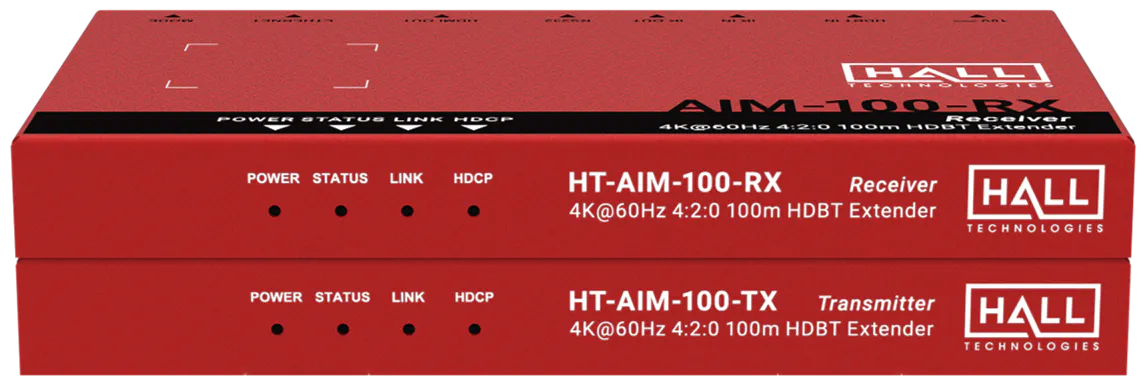

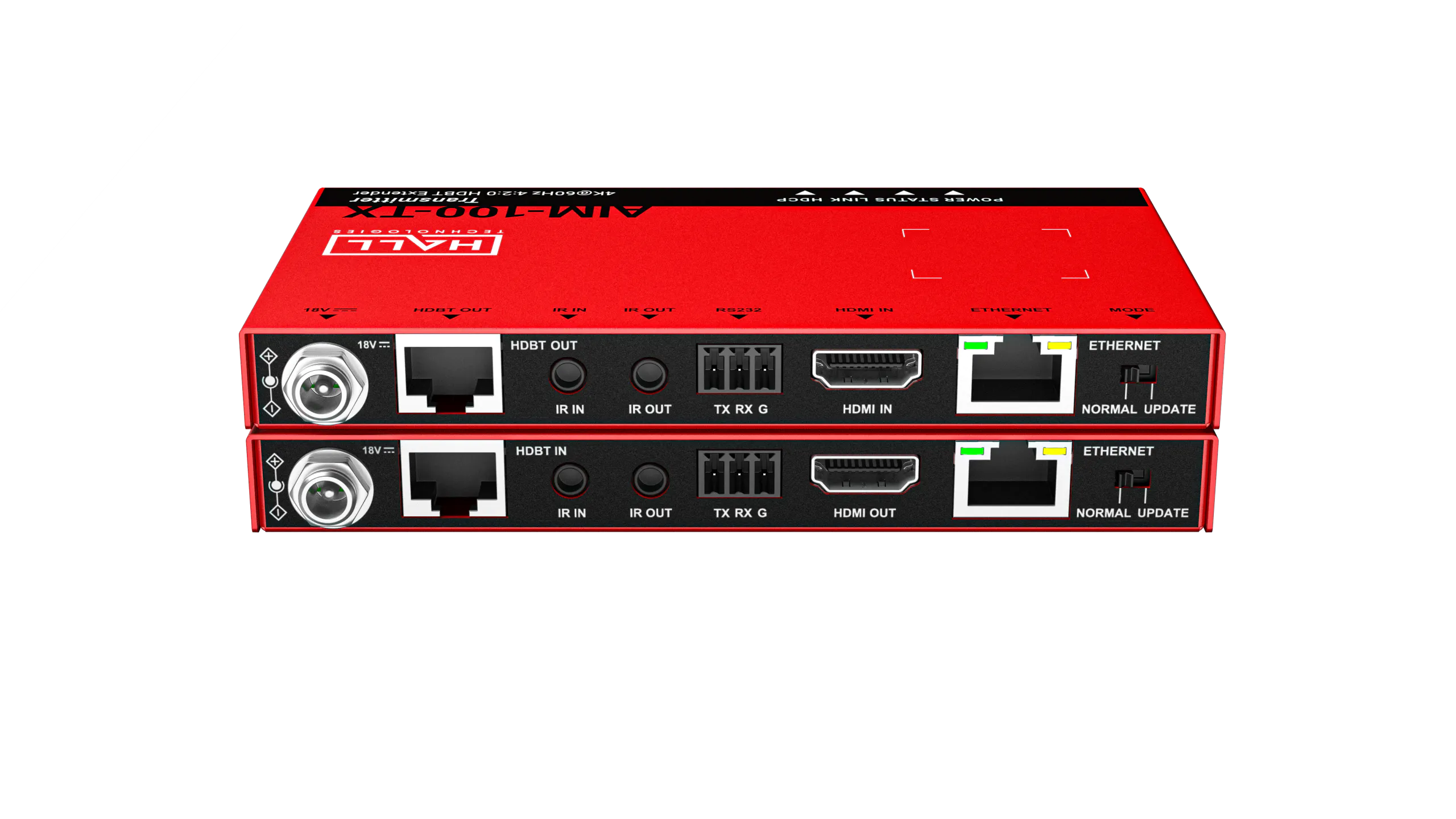

HT-AIM-100
The HT-AIM-100 is a slimline HDBaseT extender pair that can transmit HDMI signals of up to 4K 60Hz (4:2:0 8-bit) along 100m of category cabling. CAT6 cable supports 4K 60Hz (4:2:0 8-Bit) up to 100m and 1080p 60Hz HDMI signals can also be extended up to 100m. CAT6A / 7 cabling offers increased distances of 100m for 4K 60Hz (4:2:0 8-Bit) resolutions. The AT-AVA-F1411 also features bi-directional PoC, two-way IR and RS232 pass-through.
Precio para clientes
Creá tu cuenta y accedé a precios, stock y cotizaciones.
Solicitar cuenta de cliente¿Ya tenés cuenta? Ingresá
Descripción técnica
The HT-AIM-100 is a slimline HDBaseT extender pair that can transmit HDMI signals of up to 4K 60Hz (4:2:0 8-bit) along 100m of category cabling. CAT6 cable supports 4K 60Hz (4:2:0 8-Bit) up to 100m and 1080p 60Hz HDMI signals can also be extended up to 100m. CAT6A / 7 cabling offers increased distances of 100m for 4K 60Hz (4:2:0 8-Bit) resolutions. The AIM-100 also features bi-directional PoC, two-way IR and RS232 pass-through.
With the built-in control pass-through, users can control the source from the displays location or can control the display from the sources location. And, with their small form factor, the extenders are easy to install in many locations.
Dimensiones físicas
Ancho
13.5 cm
Alto
1.4 cm
Profundidad
7.7 cm
Peso
0.23 kg
Identificación del fabricante
Modelo
HT-AIM-100
