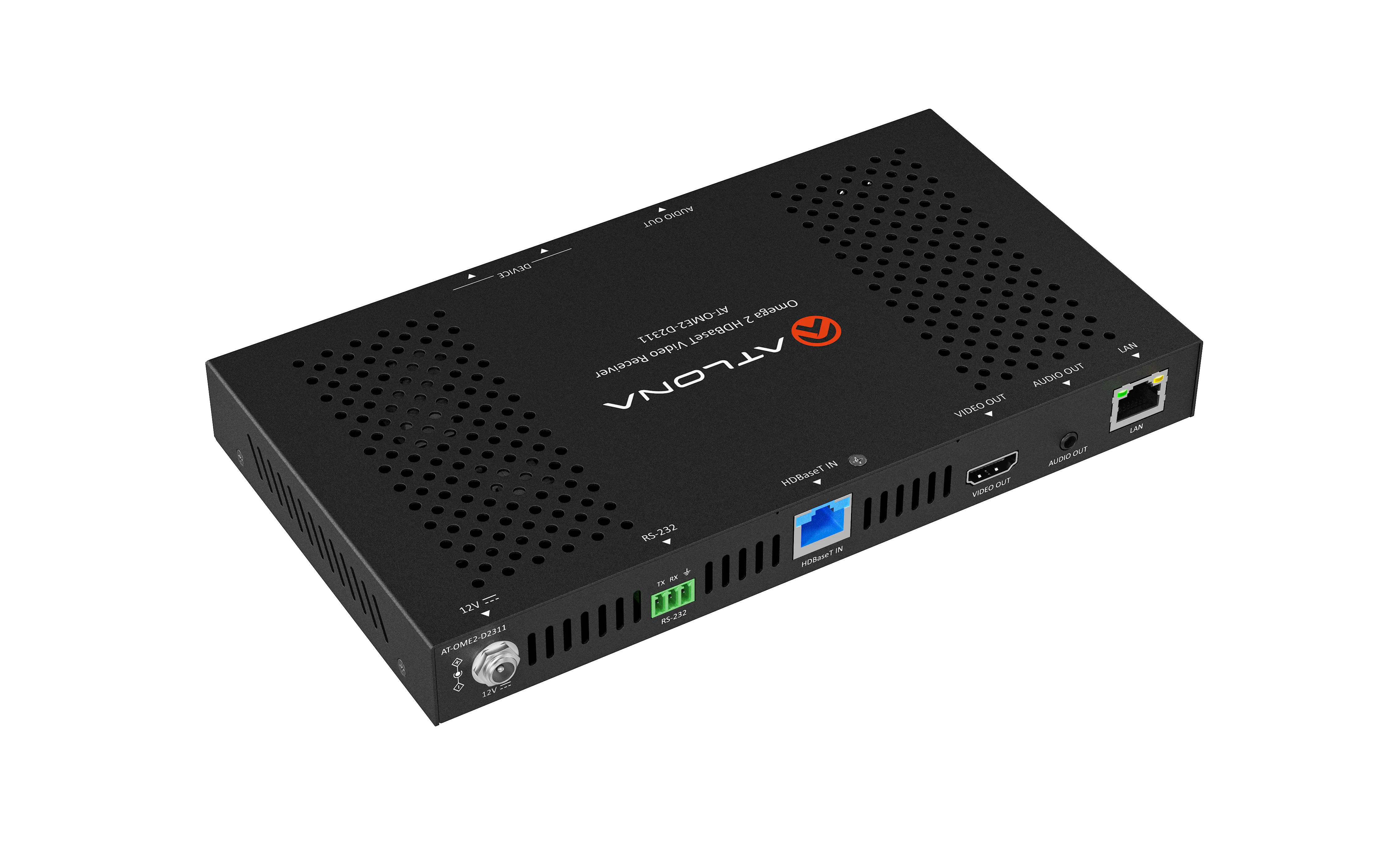

AT-OME2-D2311

The AT-OME2-D2311 is an HDBaseT 3.0 receiver that delivers uncompressed 4K/60 4:4:4 video along with USB, Gigabit Ethernet, audio and control at the display location. Four USB device ports provide convenient connectivity for cameras and other peripherals, while audio de-embedding adds flexibility for local sound systems. With transmission distances up to 330 feet over Cat 6A and bi-directional PoH, the D2311 provides a flexible endpoint for Omega Pro extension systems.

• HDBaseT 3.0 receiver — uncompressed HDMI 2.0 up to 4K@60Hz 4:4:4 8-bit; HDCP 2.2.

• Up to 330 ft (100 m) at 4K@60Hz 4:4:4 over Cat 6A; 230 ft (70 m) at 4K@60Hz 4:2:0 over Cat 5e/6.

• HDR support, including Dolby Vision and HDR10+.

• 4× USB 2.0 Type-A DEVICE ports at up to 350 Mbps; two ports supply up to 1.4 A for high-power devices.

• HDMI audio pass-through including Dolby Atmos®, Dolby® TrueHD, DTS-HD® Master Audio™, and DTS:X®.

• Analog AUDIO OUT for the transmitter's pass-through audio, plus a de-embedded AUDIO OUT.

• 1000/100 Mbps Ethernet pass-through over the HDBaseT link.

• Bi-directional RS-232 pass-through; DIP switch selects pass-through, MCU firmware update, or HDBaseT chipset firmware update.

• Bi-directional PoH — the included 12 V power supply powers both units.

• Mounting brackets included for surface installation.

• Pairs with the AT-OME2-E2311, AT-OME2-E2321-WP, and AT-OME2-R2742.
