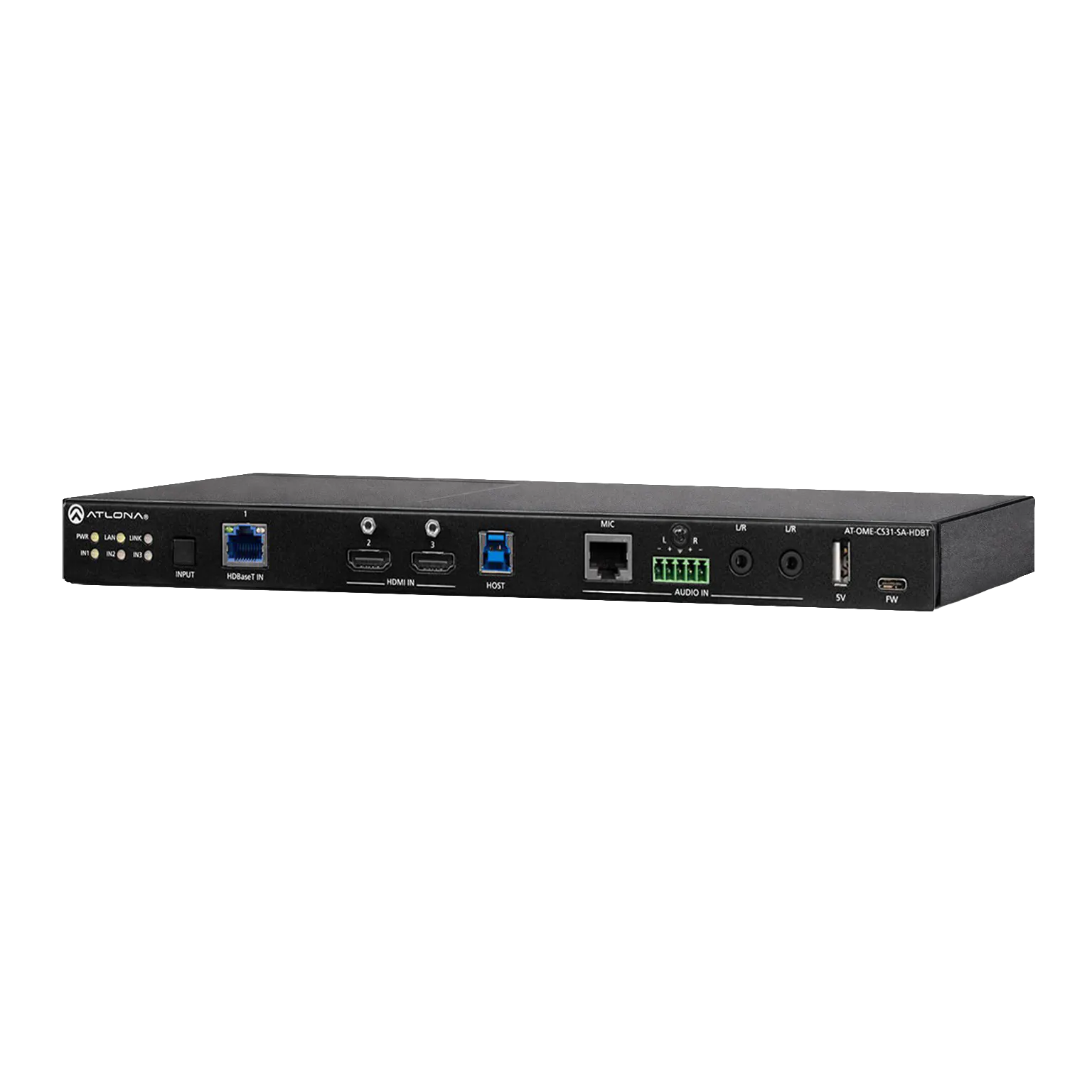

AT-OME-CS31-SA-HDBT

The AT-OME-CS31-SA-HDBT is a fully integrated AV presentation and collaboration system tailored for modern classrooms and meeting rooms. It features a 3×1 switcher with one HDBaseT input and two HDMI inputs, routing to a single HDMI output. The HDBaseT input supports extending HDMI video, embedded audio, control signals, Ethernet and USB 2.0 over distances up to 100 meters (330 ft). A built-in mixer amplifier offers either two channels of 25 W or a bridged 50 W output into 4/8 Ω loads, and provides three line-level audio inputs plus one balanced audio input/output. The system also includes a four-port USB hub (two hosts, four peripherals) for seamless integration of cameras, speakerphones, interactive displays and other USB devices. Advanced audio features such as ducking (automatic reduction of program audio when a microphone is in use), and PA-sense with contact-closure muting ensure teaching and announcement content is clearly heard. Dual Ethernet ports and RS-232 interfaces provide flexible control and automation integration.

Modelo: AT-OME-CS31-SA-HDBT

The AT-OME-CS31-SA-HDBT is an AV presentation and collaboration system featuring a 3×1 switcher with HDMI and HDBaseT inputs, 50 watt mixer amplifier, and USB routing. The AT-OME-CS31-SA-HDBT is an AV presentation and collaboration system featuring a 3×1 switcher with HDMI and HDBaseT inputs, 50 watt mixer amplifier, and USB routing. Ducking lowers program audio levels when the teacher speaks into their microphone connected to the balanced line input. Mute audio when a PA message is detected or with a contact closure. Both features ensure important lesson material and announcements are heard clearly. Automate system operation based on switcher activity, integration with occupancy sensors, or use with a Velocity control system.
